Hi-Vis Vest Sizing: Charts, Fit & Grading

Garment dimensions vs. body chest measurements

The single most frequent mistake international safety apparel distributors and construction contractors make is ordering hi-vis vests based directly on wearer body chest measurements. A safety vest is an external PPE shell, not a base layer. If a worker measures 42 inches around the chest and wears a 42-inch garment, they will experience restricted shoulder mobility, zipper tension, and seam bursting under physical strain.

Factory pattern masters grade workwear with functional allowances (ease):

• Standard Summer Allowance (+2 to +3 inches): Designed to fit over a lightweight polo or work shirt. A worker with a 40-inch chest needs a vest with at least a 42-to-43-inch finished garment circumference.
• Heavy Layering Allowance (+4 to +6 inches): Designed for winter jobsites where the vest is worn over heavy flannel shirts, thermal hoodies, or insulated jackets. In cold climates, field crews must either step up 1 to 2 sizes or procurement teams must specify seasonal outerwear grading.
• Tolerance Standard (±0.5 inch / 1.2 cm): In industrial garment manufacturing, finished flat-laid measurements are inspected under standard AQL 2.5 criteria. A half-inch variation is the internationally recognized manufacturing tolerance across chest width and back length.

Industrial safety vest size chart (S to 5XL)

To eliminate sizing ambiguities during international OEM/ODM procurement, RuggedCore Safety grades high-visibility garments to standard American National Standards (ANSI) and European (EN ISO) anthropometric tables. Below are standard finished garment specifications:

Measurement method: Lay the vest completely flat, zip the front zipper closed, and measure straight across the chest 1 inch below the armhole seam. Double this width measurement to calculate total garment circumference.

The seasonal layering rule: summer vs. winter fit

One of the largest drivers of field complaints is ordering a single size curve for year-round distribution. A vest that fits perfectly over a breathable mesh work shirt in July will choke the worker when worn over a Carhartt-style duck canvas jacket or a waterproof winter safety parka in December.

Industrial programs have two proven strategies to address seasonal fit:

1. Dual-Season Sizing Allocation: Commercial contractors split their annual bulk orders into two distributions. Summer orders skew toward M, L, and XL in 120gsm breathable polyester mesh. Fall/winter shipments skew one full size up (L, XL, 2XL) and feature solid 300D Oxford fabric or black-bottom vests that resist grease and mud.
2. Hook-and-Loop or Snap Adjustable Sides: For programs with variable staffing or high turnover, OEM buyers can specify expandable side panels (zipper gussets or dual-snap closures). These expand garment chest circumference by 2 to 4 inches on demand, allowing one vest to span across seasons.

The ANSI/ISEA 107 Small-size compliance trap

A critical technical fact often missed by non-manufacturing suppliers is the physical surface area requirement mandated by ANSI/ISEA 107-2020 and EN ISO 20471. To certify an ANSI Type R Class 2 vest, the garment must incorporate at least:

• 775 square inches (0.50 m²) of fluorescent background material.
• 201 square inches (0.13 m²) of retroreflective material (typically 2-inch wide silver tape).

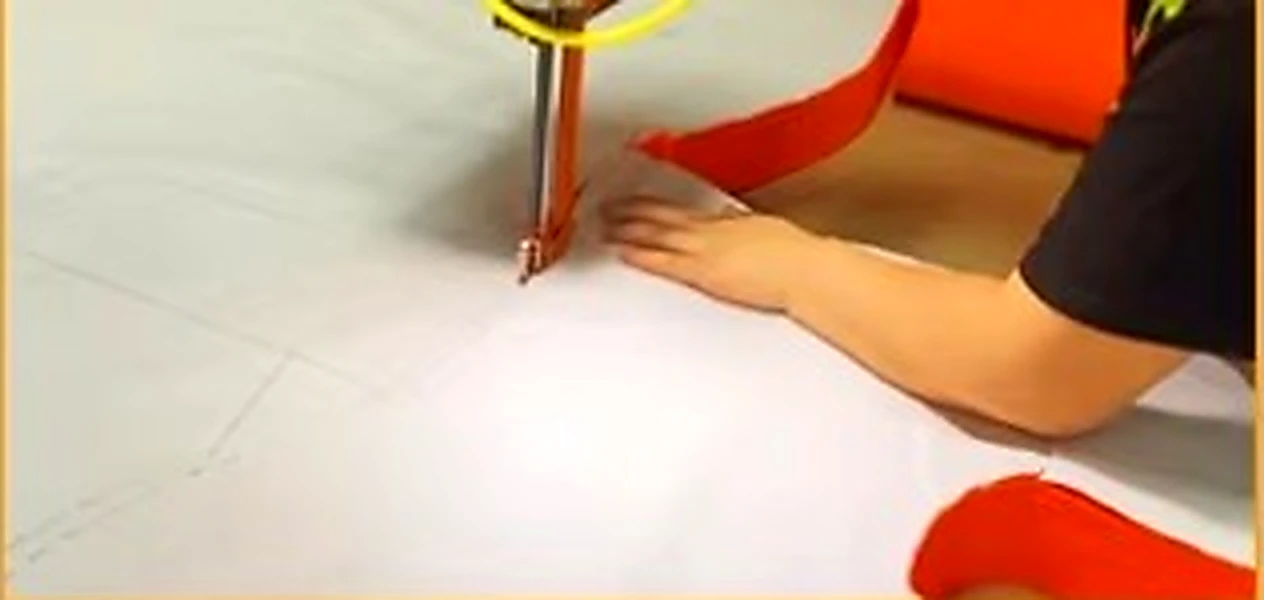

On a size 3XL vest, meeting this surface area requirement is effortless because the garment cut is massive. On a size Small (S) or Extra Small (XS) vest, however, total garment surface area shrinks dramatically. Inexperienced factories that grade down simply by cutting away fabric often fail third-party lab testing because the small vest no longer contains 775 square inches of fluorescent yellow or orange background fabric.

How verified factories solve this: Under the ANSI 107 standard, an allowance allows the smallest size in a garment line to feature slightly modified background area (down to 540 sq in for Type R Class 2 in specific sub-clauses) provided the design configuration is certified. Professional pattern makers maintain compliance by extending bottom hem length or widening shoulder panels on small sizes.

Recommended size breakdown for 1,000-piece bulk orders

If you are launching a new PPE distribution program or fulfilling a regional municipal tender without pre-collected worker size sheets, how should you allocate your order quantities? Based on twenty years of factory export data across North America and Europe, here is the industry-standard distribution curve for a 1,000-piece bulk order:

Note: For cold-weather northern regions (Canada, Nordic Europe, Northern US), shift 5% from Medium into 2XL and 3XL to account for thick thermal undergarments.

Frequently asked questions
